Pre-separators

PS 200

Technical Data PS200
Mini cyclonic pre-separator ideal for separation of fine dust. Since the separator doesn’t have any bottom valve it must be used together with a vacuum tight container. Delivered with mounting flange at bottom. Dimensions: Height 60 cm, width 22 cm. Bottom opening: 70 mm.

Art.no. 300310

Volume 12 l.
Connection: 51 mm.
Weight: 4 kg.

PS 300

Technical Data PS300
Compact pre-separator equipped with counterbalance flap for selfemptying. Delivered with wall mount and dust bag holder. Dimensions Height 70, width 32 and depth 35 cm.

Art.no. 300300

Volume 40 litres
Connection Ø 51 mm.
Weight 11 kg

PS 370

Technical Data PS370
Pre-separator with large volume equipped with counterbalance flap for selfemptying. Delivered with wall mount and dust bag holder. Dimensions Height 96, width 41 and depth 46 cm.

Volume 80 litres
Connection Ø 63 mm.
Weight 19 kg
Dustbag, volume 40 litres

PS 370m

Technical Data PS370M
Mobile pre-separator suitable for dry and wet waste. Equipped with washable polyester filter and 4 castor wheels. Filter Washable polyester cartridge filter. Dimensions Height 70, width 51 cm.

Art.no. 300320

Volume 40 litres
Connection Ø 51 mm.
Weight 14 kg
Size 1,7 m²

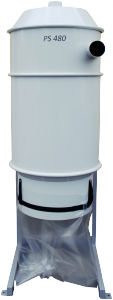

PS 480

Technical Data PS480
Large pre-separator equipped with air operated flap for emptying. Delivered with floor stand. Air intake can be changed from left to right. Attachment for dust bag. Dimensions Height 114, width 41 and depth 46 cm.

Volume 160 litres
Connection Ø 76 mm.
Weight 56 kg
Dustbag, volume 60litres

Floor stand for PS300, PS370 and PS480

Pre-separator for hot ashes
