Hose Reels

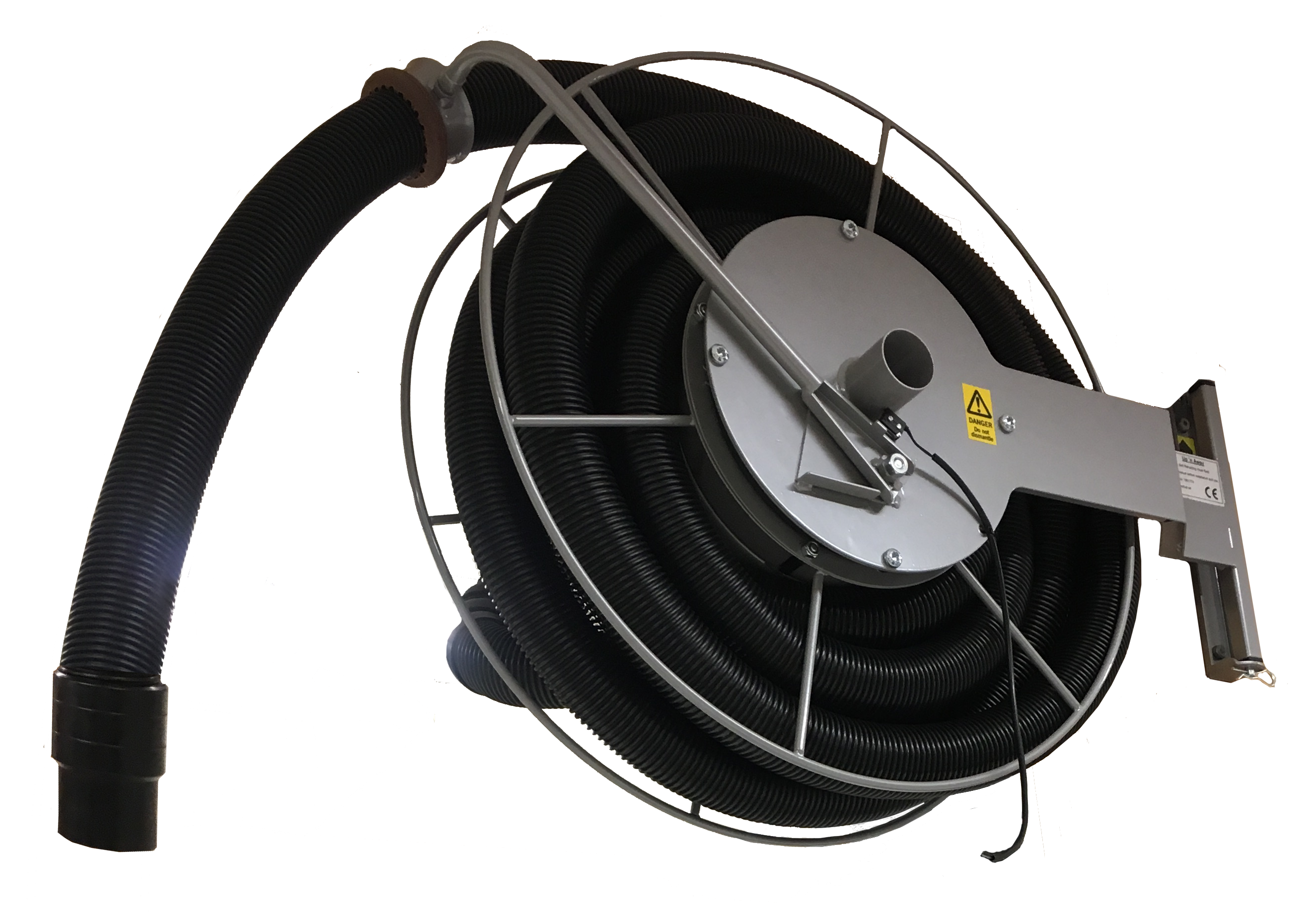

HOSE REEL STANDARD
HOSE REEL XL
Technical data standard/XL
Dimensions(LxWxH) mm. 890x240x650/940x240x650
Weight, kg. 32 and 38 - 12/20, 50 - 14/20
Hose, Ø mm x length, m.
32 x 10
38 x 8,5/38 x 12
50 x 7,3/50 x 10
Connection, Ø mm. 32/38/50
Article no.
Up ‘n Away 32 Wall support 383210
Up ‘n Away 32 Ceiling support 383220
Up ‘n Away 32 Arm support 383215
Up ‘n Away 38 Wall support 383810/385035
Up ‘n Away 38 Ceiling support 383820/385045
Up ‘n Away 38 Arm support 383815
Up ‘n Away 50 Wall support 385010/385030
Up ‘n Away 50 Ceiling support 385020/385040

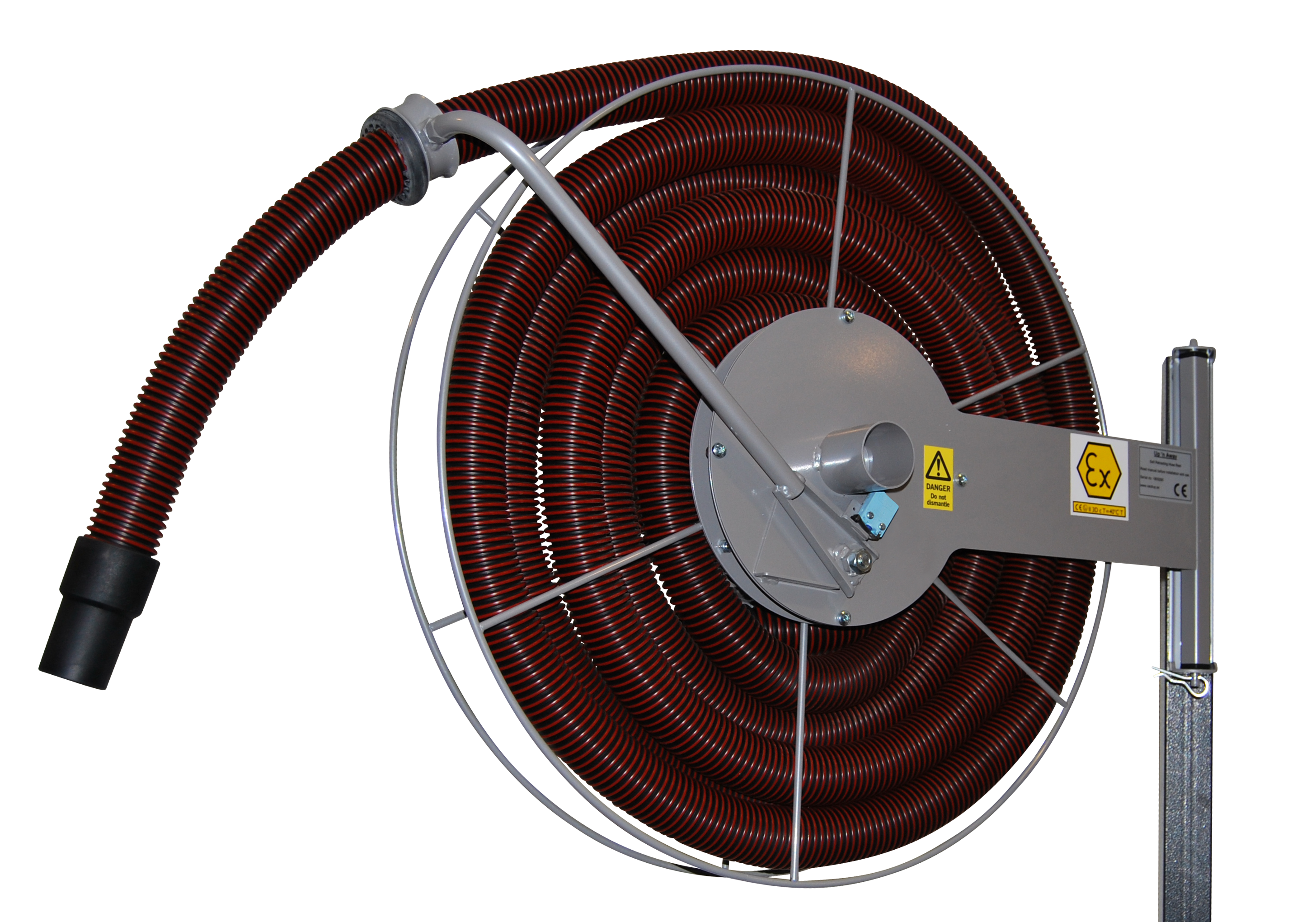

HOSE REEL STANDARD EX
HOSE REEL XL EX
Technical data standard EX/XL EX
Dimensions(LxWxH) mm. 890x240x650/940x240x650
Weight, kg. 38 - 12/20, 50 - 14/20
Hose, Ø mm x length, m.
38 x 8,5/38 x 12
50 x 7,3/50 x 10
Connection, Ø mm. 38/50
Article no.
Up ‘n Away 38 Wall support 383830/383850
Up ‘n Away 38 Ceiling support 383840/383860
Up ‘n Away 50 Wall support 385060/385080
Up ‘n Away 50 Ceiling support 385065/385085

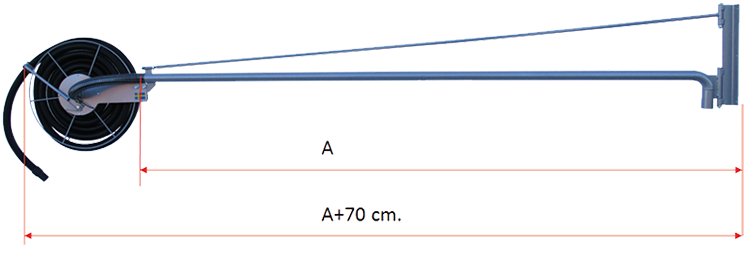

A = 100, 200 or 300 cm
ArtNo. 384001 Extension arm for hose reel 32 and 38 mm. Length 1 m.
ArtNo. 384002 Extension arm for hose reel 32 and 38 mm. Length 2 m.
ArtNo. 384003 Extension arm for hose reel 32 and 38 mm. Length 3 m.
N.B. Hose reel must be ordered separately.
